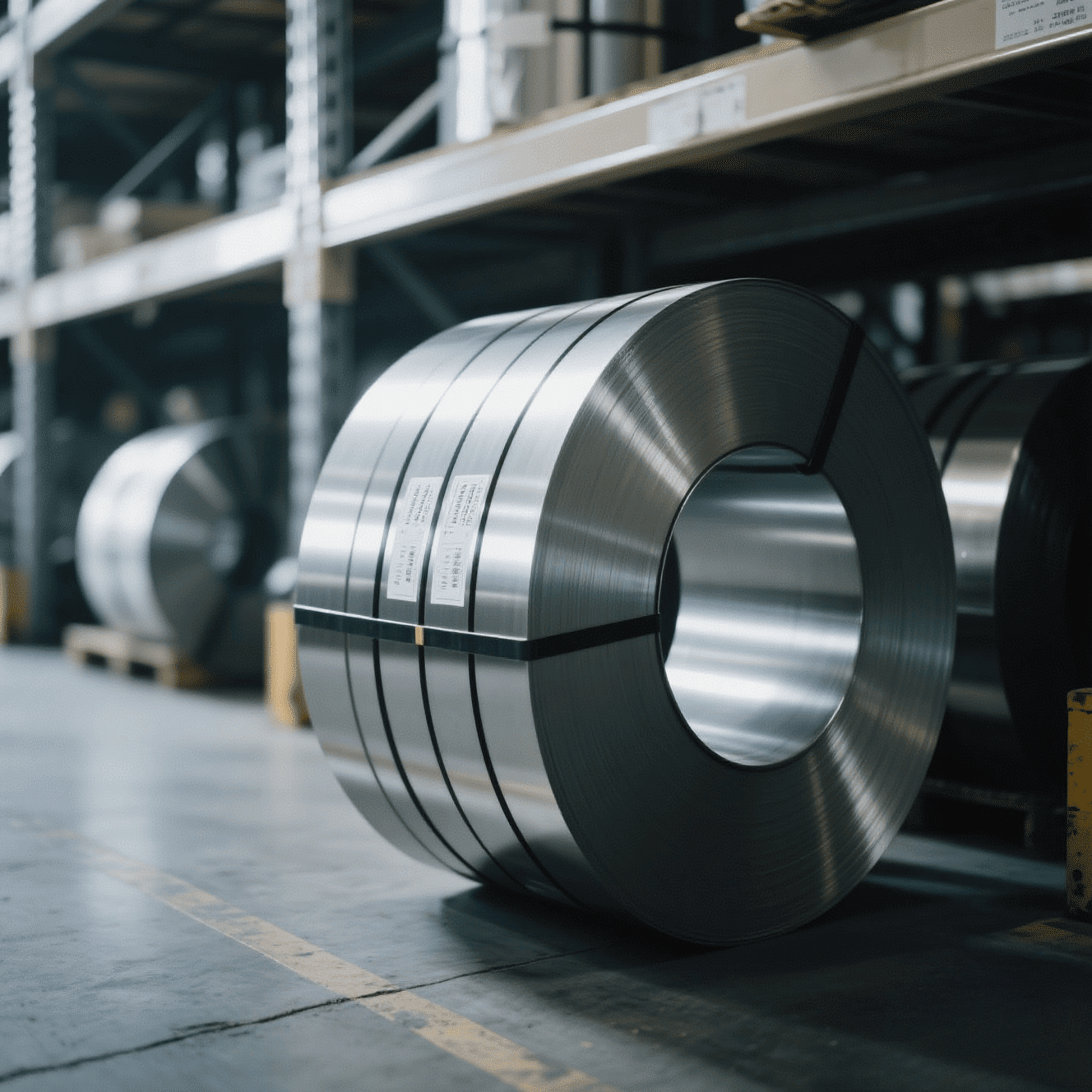

304 Stainless Steel Strip Roll
304 Stainless Steel Strip | Annealed | Cold-Rolled ASTM A240 Compliant
Our 304 soft temper precision stainless steel strip combines the inherent corrosion resistance of 304 austenitic stainless steel with optimized ductility through annealing, delivering a material ideal for intricate forming, deep drawing, and precision manufacturing.
Our 304 Annealed Stainless Strip Roll key mechanical properties
- Vickers Hardness: 150-200 HV
- Tensile Strength: ≥480 MPa | Yield Strength: ≥205 MPa.
- Elongation: ≥40%
Available Sizes & Forms:
- Thickness Range: 0.01-1.50 mm.
- Slitting Width: 2-300 mm
- Materials can be delivered in forms of strip coils and cut-to-length.
Gauge Tolerance:
- Thickness Tolerance: +/-0.005 mm
- Width Tolerance: +/-0.1 mm
Exceptional Formability:
- Fully annealed structure provides maximum ductility (elongation ≥40%), enabling complex shaping without cracking—ideal for deep drawing, stamping, or roll forming.
- Low yield strength (≤205 MPa) and tensile strength (480-650 MPa) facilitate easy machining and reduced tool wear.
Surface Finish:
- 2B -Cold rolled, heat treated, pickled and skin passed. Smooth surface.
- BA -cold rolled, bright annealed and skin passed. Smooth, bright and reflective surface.
Specifications:
Our type 304 stainless steel is covered by the following specifications:
- ASTM A666
- ASTM A240
Edging Treatment:
- Mill Edge – untreated edge, generally with a somewhat uneven contour.
- Slit Edge – edge with the shearing burr not removed.
- Deburred Edge – slit edge from which the burr has been removed
- Round Edge – edge completely rounded.
